Grypper
- Zero Footprint Socket
- Same size as device
- No lid required
- Device is simply pressed in
- Solderable on original hardware

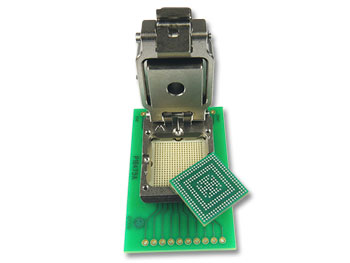

Test & Burn In Socket for BGA & QFN
- Pitch 0.2mm to 1.27mm
- Optimal signal integrity
- Up to 20 GHz
- More than 300.000 test cycles
- Quicklock
- -55°C ... +180°C
![[Translate to Englisch:] SBT GHz Sockel für BGA & QFN](fileadmin/user_upload/EMC/Distribution/Ironwood/C15854c_midsize.jpg "[Translate to Englisch:] SBT GHz Sockel für BGA & QFN")

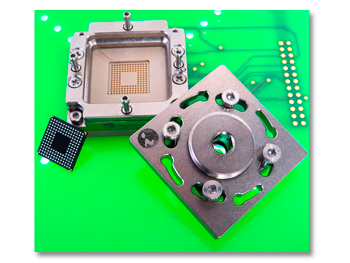

Sockets for 94 GHz and above
- Pitch 0.2mm to 1.27mm
- Above 94 GHz @ -1dB
- Contact resistance 25 mΩ
- Temperature range -55°C to +180°C
- More than 200.000 test cycles
Accessories for Sockets

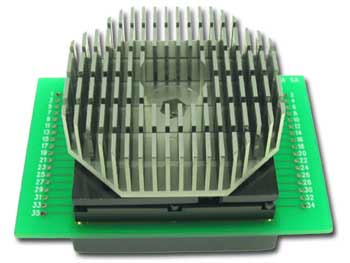

- Heatsinks and Fans
- Quicklocks
- Sensor options
- SMT Adapter
- THT Adapter
Socket Technology Overview
- Spring pins
- Elastomer variants

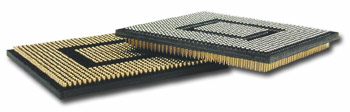

Giga-snaP™ BGA Adapter
- Pitch 0.5mm to 1.27mm
- Female with balls
- Male with balls
- IC carrier
- Extensions
- RoHS and non RoHS
- For all Footprints
![[Translate to Englisch:] Giga-snaP™ BGA Adapter](fileadmin/user_upload/EMC/Distribution/Ironwood/giga_snap_midsize.jpg "[Translate to Englisch:] Giga-snaP™ BGA Adapter")

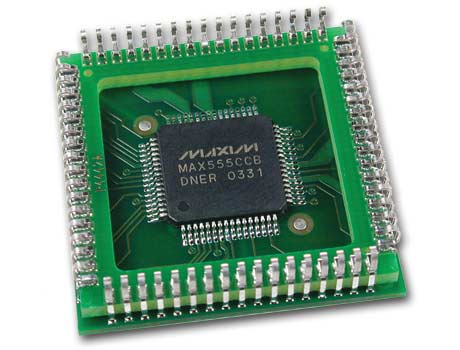

Package Converter
Fast Solution for
- fixing of layout errors
- obsolete parts
- when having soldering problems
- BGA to QFP
- QFP to PGA
- QFP to QFP

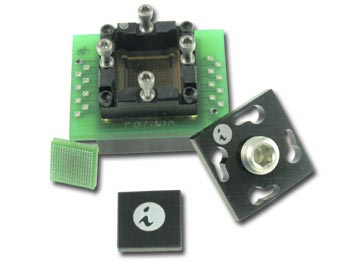

GHz Elastomer Socket for BGA & QFN
- Pitch 0.25mm to 1.27mm
- Optimal signal integrity
- Up to 30 GHz
- More than 2000 test cycles
- Quicklock
- SMD or solderless
![[Translate to Englisch:] GHz Elastomer Sockel für BGA & QFN](fileadmin/user_upload/EMC/Distribution/Ironwood/BGA_Socket_C9307a.jpg "[Translate to Englisch:] GHz Elastomer Sockel für BGA & QFN")
Standardized Socket
- Pitch 0.35mm to 1.27mm
- Spring pin contacts
- Standardized components
- Fast availability
