Category overview
Product group overview
- Fine Pitch Plug Board Connectors
Fine Pitch Plug Board Connectors
The Fine Pitch board-to-board connectors enable "high density low profile" PCB connections. These connectors are generally not designed for high mating cycles, but for a one-time connection with the possibility to perform a limited number of mating cycles (about 5 times) during the lifetime of the product for maintenance purposes.
Available in the pitch dimensions 0.50mm / 0.60mm / 0.80mmProduct details
- Pin Header
Pin Header
Pin-Header in standard soldering, "pin in paste" and SM technology. Straight and angled, available as board spacers, PC 104+ type, high-base "board to board", jumpers and short-circuit bridges.
Product details
- Box Header
Box Header
Box header, also referred to as a "shrouded header", standing and lying in throu hole soldering (TH) and SM technology. Thanks to coding, a "board-to-board" or "board-to-wire" connection with IDC plug-in connectors is possible.
Product details
- Mini-Flex™
Mini-Flex™
The Mini-Flex™ IDC connectors provide an extremely reliable "wire-to-board" connection using standard 1.27mm (UL Std. 2651) flat ribbon cables with the Mini-Mate™ family of connectors. In addition, the E-tec Mini-Mate™ and Mini-Flex™ connector family is 100% compatible with the standards of other manufacturers.
Product details
- Mini-Mate™
Mini-Mate™
These special miniature sockets and pin headers in pitch 1.27mm are available with a plug or solder connection (THT), but also as a surface mount type (SMT). Whether vertical or horizontal, the small compact design provides the highest degree of contact safety and reliability. The versatility of this Mini-Mate™ connector family is demonstrated in conjunction with the Mini-Flex™ design. In addition, the E-tec Mini-Mate™ and Mini-Flex™ connector family is 100% compatible with the standards of other manufacturers.
Product details
- Female Header
Female Header
Female headers in standard soldering and SM technology. Vertical as well as horizontal as, PC 104+ type, "low" & "high" profiles, "top", "side" & "dual" -entry available.
Product details
- IDC Connectors
IDC Connectors
IDC connectors as socket, "DIP plug" and "transition" version, card edge, box and DIN header (DIN 41 651)
Product details
- Flex Board and Flex Cable Connectors
Flex Board and Flex Cable Connectors
Flex Board and Flex Cable connectors in soldering (THT) and surface mount (SM) technology for "Flexible Printed Circuit" (FPC) and "Flexible Flat Cable" (FFC). "ZIF" (Zero Insertion Force) and "LIF" (Low Insertion Force) versions vertical and horizontal.
Product details
- Flex Cable
Flex Cable
Flex Cable, customer-specific assembly available pitch from 0.50mm to 2.54mm.
Product details
- ZIF test sockets for Flex Cable
ZIF test sockets for Flex Cable
ZIF ("Zero Insertion Force") test sockets for Flex Cable in pitch 0.50mm to 2.54mm. The ZIF test sockets are designed for up to 10,000 test cycles with easy opening / closing of the ClamShell lid.
Product details
- Crimp-Contact Connectors
Crimp-Contact Connectors
Crimp-Contact connectors of the smallest possible dimensions. A reverse-polarity "board-to-wire" connection in soldering (TH) and surface mount (SM) technology. Most of the E-tec crimp-contact connectors are 100% compatible with those of Molex, Tyco (AMP) or JST.
Product details
- Power Connectors
Power Connectors
Despite the smallest possible dimensions, the E-tec power connectors are robust, reverse-polarity-proof "board-to-wire" connections in soldering (TH) and SM technology. Most are 100% compatible with those of Molex, Tyco (AMP) or JST.
Product details
- SMC Multi BUS/Backplane Connectors
SMC Multi BUS/Backplane Connectors
The SMC Multi BUS/Backplane connectors of the E-tec series "MBC" with a pitch of 1.27mm are available in various heights. They thus offer the user the possibility of an optimal module design, flexible PCB spacing for assembly solutions in all industries. Vertical over each other (mezzanine), horizontal to horizontal (extender card), or vertical to horizontal. Thanks to the polarization, all versions are twist-proof.
Product details
- D-Sub ultra slim profile
D-Sub ultra slim profile
Ultra Slim Profile D-Sub connectors are used wherever you need space on your PC board.
Standard and "High Density" designs in through-hole soldering and SM technology as "male" / "female", vertical / horizontal, "Wave Solder" / "pin-in-paste" technology.Product details
- D-Sub standard version
D-Sub standard version
E-tec standard D-Sub connectors conform to valid specifications and industry standards such as DIN 41 652, IEC 48 B, HE 5 etc. They are also compatible with all other D-Sub connectors offered on the market.
Together with a variety of accessories, the D-Sub connectors can be used in many applications, e.g. Industrial electronics, data and communications technology and many more.Product details
- D-Sub high density version
D-Sub high density version
The high density (3-row) D-Sub family includes connectors for manual soldering and vertical soldering technology.
The horizontal types are also available in "pin-in-paste" technology as well as "VESA" type.Product details
- D-Sub with ferrite filter
D-Sub with ferrite filter
The E-tec D-Sub connectors with ferrite filters in standard and high density design are the ideal solution to reduce or even eliminate "electromagnetic interference" (EMI).
Many different designs, e.g. vertical, horizontal, "single port", "dual port" and "high density" are available. Capacitive D-Sub filter connectors on request.Product details
- Raised D-Sub
Raised D-Sub
E-tec's "raised" D-Sub connectors are ideally suited for overlapping other connectors or components on your PCB.
Product details
- D-Sub dual port 90° - 2x mixed
D-Sub dual port 90° - 2x mixed
Dual Port D-Sub connectors offer space-saving and assembly-saving "over-top" construction of two E-tec D-Sub connectors. They are available in a variety of combinations and designs. E.g. Standard and High Density, with and without ferrite filter, socket and plug also in the mix.
Product details
- D-Sub triple port 90° - 3x mixed
D-Sub triple port 90° - 3x mixed
Tripple Port D-Sub connectors offer space-saving and assembly-saving "over top" construction of three E-tec D-Sub connectors. They are available in a variety of combinations and designs. E.g. Standard and High Density, with and without ferrite filter, socket and plug also in the mix.
Product details
- D-Sub accessories and hoods
D-Sub accessories and hoods
"Slide Lock" and a variety of Jack Screws as well as EMI / RFI metal hoods, plastic and metallized plastic hoods.
Product details
- DVI connectors
DVI connectors
DVI (Digital Visual Interface) the interface for digital data. DVI has established itself as the successor to VGA. In the professional environment, this interface is now a must for graphics cards and TFT displays. Many TVs already support the DVI interface and offer the possibility to connect PC's or DVD players. DVI-D(igital) and DVI-I(ntegrated) connectors are available from E-tec.
Product details
- HDMI connectors
HDMI connectors
HDMI is a digital audio / video interface developed from the middle of 2002 and offers the possibility to transfer uncompressed streams. HDMI is an interface between any compatible digital audio / video source, e.g. A set-top box, a DVD player or an AV receiver, or a compatible digital audio and / or video monitor, as well as digital television (DTV).
In June 2006 version 1.3 was introduced, whose standard is specifically focused on the home entertainment sector.
The new HDMI specification 2.1 is to be introduced at the beginning of the 2nd quarter 2017.Product details
- USB & IEEE 1394 connectors
USB & IEEE 1394 connectors
The USB (Universal Serial Bus) allows "plug & play" connections to a variety of peripherals. Whether SM- or Through-hole technology, standard, "mini" or "micro" design, female or male, or cable-assembled connectors of "A" and "B" as well as USB 1.0 / 2.0 / 3.0 can be found on the following pages.
The IEEE 1394 (FireWire) interface is mainly used for fast data exchange between computers and multimedia or other peripherals, but also in industrial and automotive electronics.Product details
- Mini DIN connectors
Mini DIN connectors
Mini DIN connectors are for computer, video, audio or other digital applications. Embodiments such as e.g. Shielded and unshielded, SM or Through-hole technology as well as panel mounting are available.
Product details
- SCSI connectors
SCSI connectors
SCSI (Small Computer Systems Interface) connectors to safely connect computers with peripherals such as parallel printers, CD-ROM drives, SCSI disks, scanners etc.
Product details
- Centronics connectors
Centronics connectors
E-tec offers three different versions. Soldering 90°, "solder cup" for manual soldering and IDC.
Product details
- Micro D-Sub
Micro D-Sub
With these new Micro D-Sub connectors, E-tec offers an economical solution for commercial applications that require the density of microminiature connectors.
The "male" version is available as a 90° variant in THT, the "female" as a cable assembly kit.Product details
- D-Sub waterproof
D-Sub waterproof
E-tec's new "Waterproof" D-Sub series guarantees the IP67 protection class. Available as a standard and high-density version for board or wall mounting, but also for attaching cables for use in waterproof hoods.
Product details
- M8 Circular Connectors
M8 Circular Connectors
Circular connectors are indispensable in today's industrial automation. The applications of standardized circular connectors range from communication technology such as Ethernet, PROFINET, Profibus, Devicenet and CANbus to clever power supply solutions. The circular connectors must be able to withstand wind, water and vibration in harsh environments, thanks to the standardized screw connections in M8 and M12 thread dimensions and IP68 classification. E-tec offers a selection of the most common codings (A, B and D) in accordance with the IEC 61076-2-104 and IEC 61076-2-101 standards. The circular connectors are available as a Through-hole soldering (THT) version for PCB mounting as well as with solder cup for panel mount or cable assembly.
Product details
- M12 Circular Connectors
M12 Circular Connectors
Circular connectors are indispensable in today's industrial automation. The applications of standardized circular connectors range from communication technology such as Ethernet, PROFINET, Profibus, Devicenet and CANbus to clever power supply solutions. The circular connectors must be able to withstand wind, water and vibration in harsh environments, thanks to the standardized screw connections in M8 and M12 thread dimensions and IP68 classification. E-tec offers a selection of the most common codings (A, B and D) in accordance with the IEC 61076-2-104 and IEC 61076-2-101 standards. The circular connectors are available as a Through-hole soldering (THT) version for PCB mounting as well as with solder cup for panel mount or cable assembly.
Product details - Modular Jacks & Plugs
Modular Jacks & Plugs
- RJ9, RJ11 and RJ45 single and multiport
- RJ45 / USB Mix
- unshielded and shielded, also with filters and LEDs
- Cat 5 and Cat 6 versionsProduct details

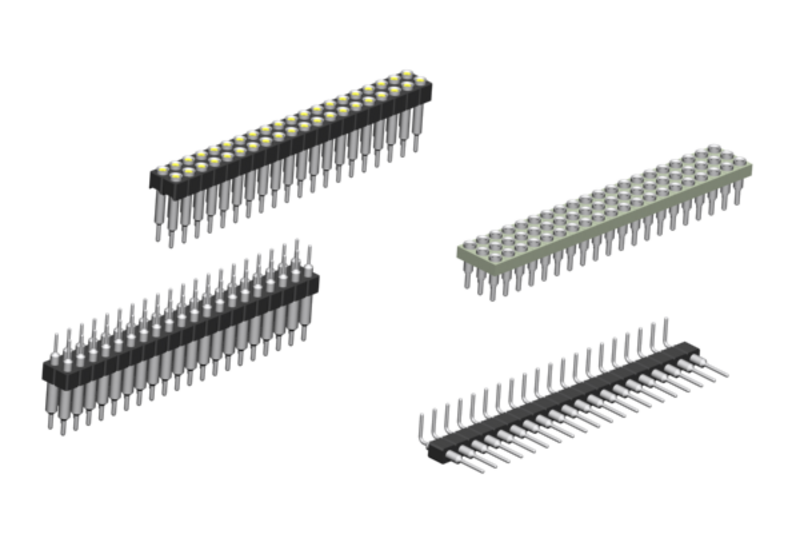

- THT - Socket Strips
THT - Socket Strips
1-row, 2-row and 3-row complement the E-tec range of sockets with precision (turned) contacts.
Product details
- SMT - Socket Strips

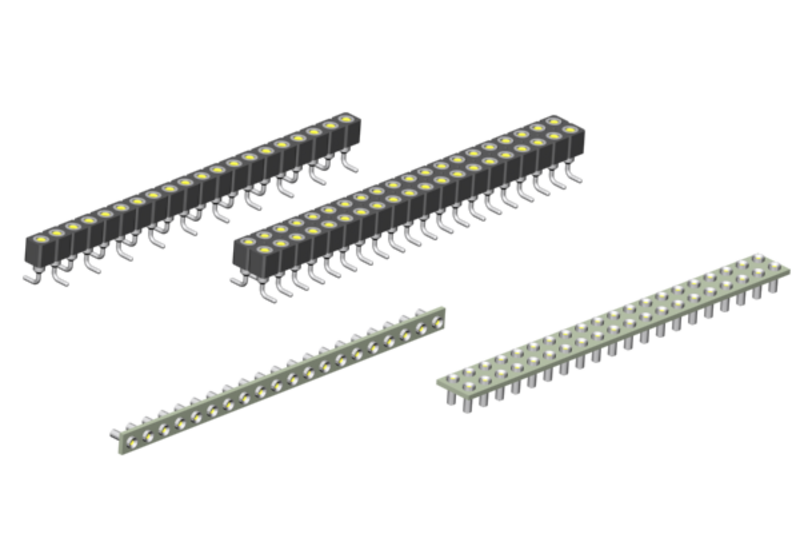

SMT - Socket Strips
1-row, 2-row and 3-row, they supplement the E-tec range of sockets with precision (turned) contacts.
Product details
- "F" - Contact Strips
"F" - Contact Strips
These ITT Cannon G09 compatible contact strips are universally applicable and you can let your imagination run wild. The stamped "F" contacts are robust and guarantee a long product life.
Product details

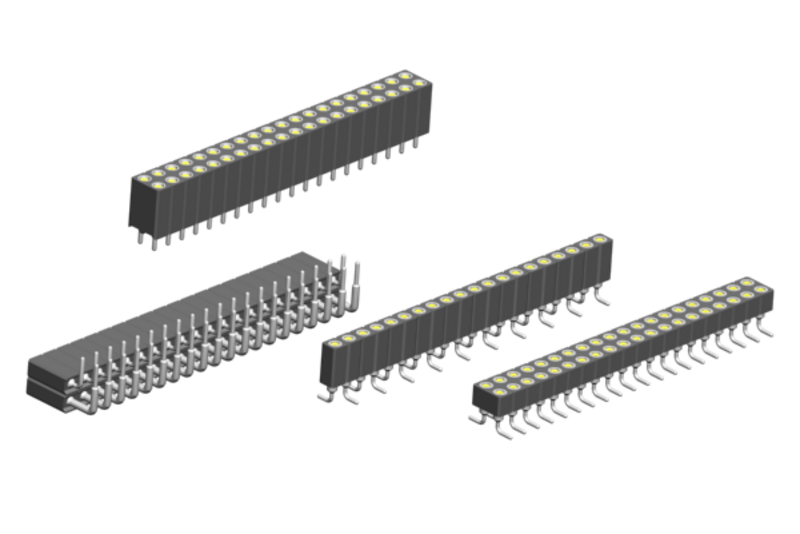

- Jumbo Socket Strips
Jumbo Socket Strips
E-tec's "Jumbo" socket contact strips with their precision (turned) contacts are suitable for Pin Header Pins of 0.64x0.64mm. They are available as vertical THT and SMT, as well as horizontal (90 °) THT, but also available for pressing (press fit).
Product details
- IC DIP Sockets

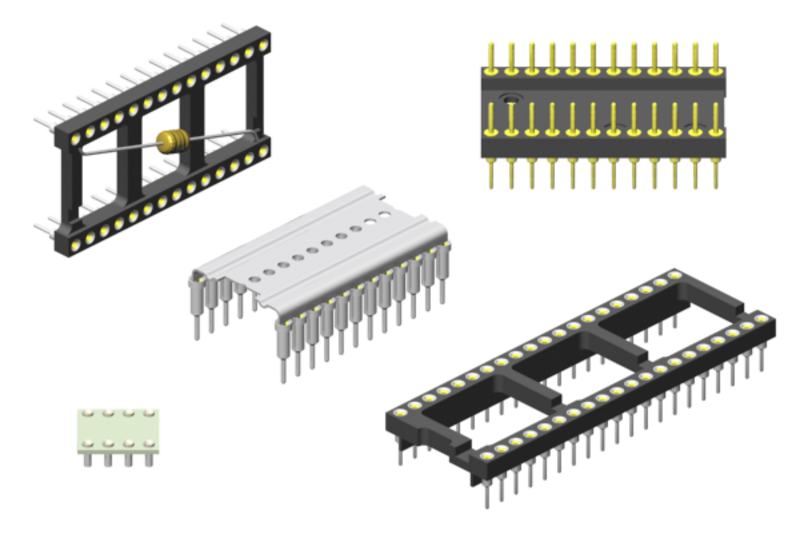

IC DIP Sockets
E-tec offers a variety of designs with turned precision contacts as well as punched folded contacts. Whether THT, SMT, different heights and pitch, open or closed insulating body, it can be selected under a variety of terminal and plating variants.
Product details

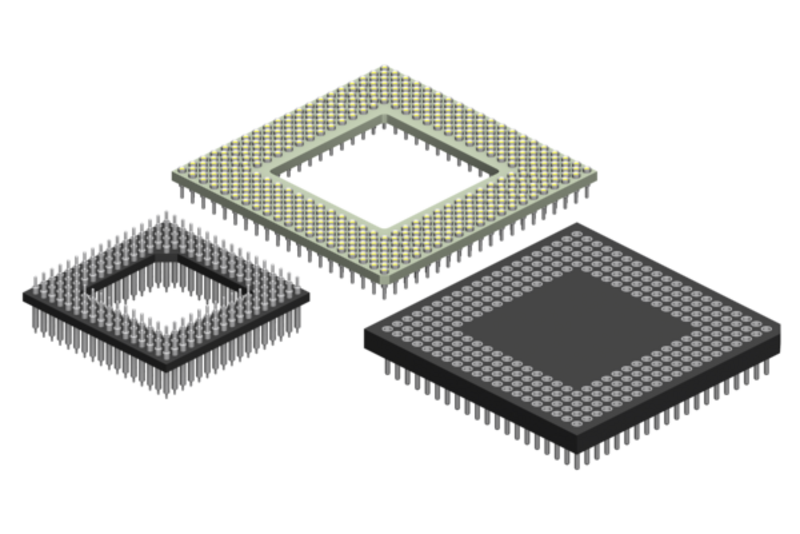

- PGA Sockets and Adapters
PGA Sockets and Adapters
The PGA sockets with 2.54mm (.100") pitch and PGI sockets with 2.54x1.27mm (interstitial) pitch are available in a variety of different configurations and terminal variants, as well as board to board adapters for different board distances. Many predefined, but also customer-specific contact configurations are possible.
Product details
- LCC- and PLCC-Sockets

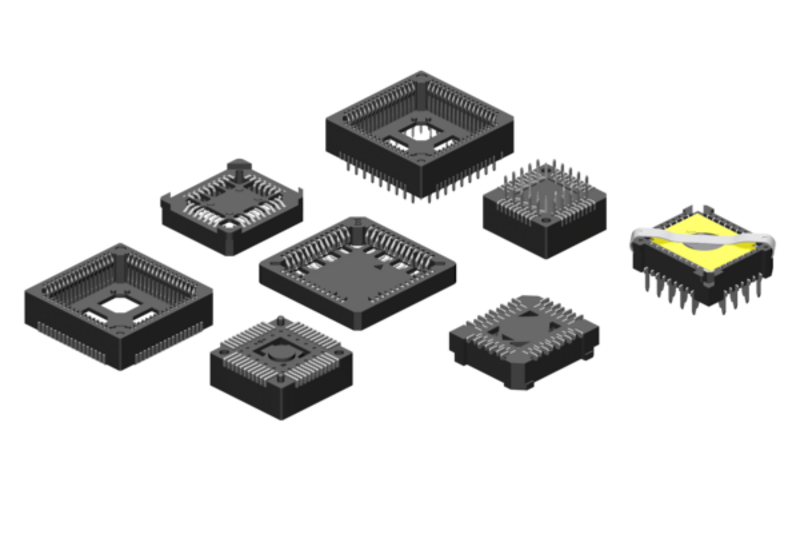

LCC- and PLCC-Sockets
E-tec LCC sockets with punched precision contacts, 32- and 44-pin SMT and THT versions. There is also a clip for the LCC device available. Recommended for high shock and vibration.
Product details

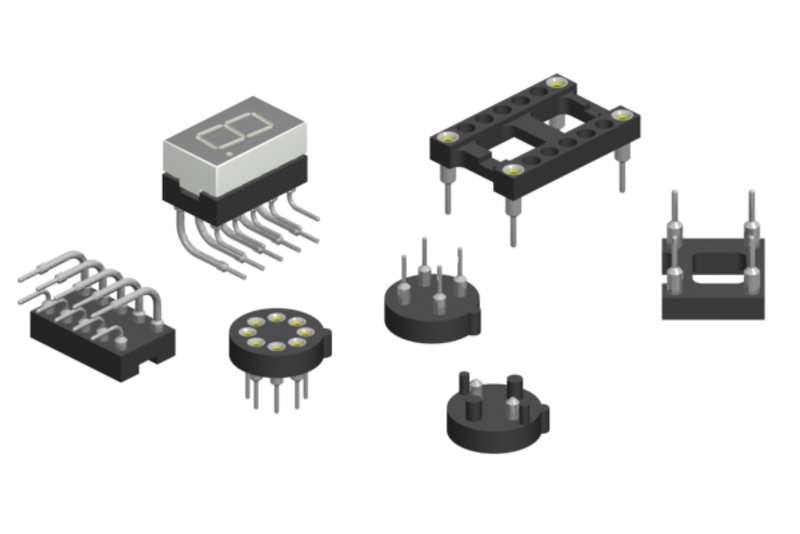

- Special Sockets and customer specific design
Special Sockets and customer specific design
From E-tec, we can offer a variety of special sockets, such as "Crystal Oscillator", transistor and TO housing, 7-segment displays or DIP switches, just to name a few.
But there are also possibilities to follow your special needs. Here you find some examples.Product details

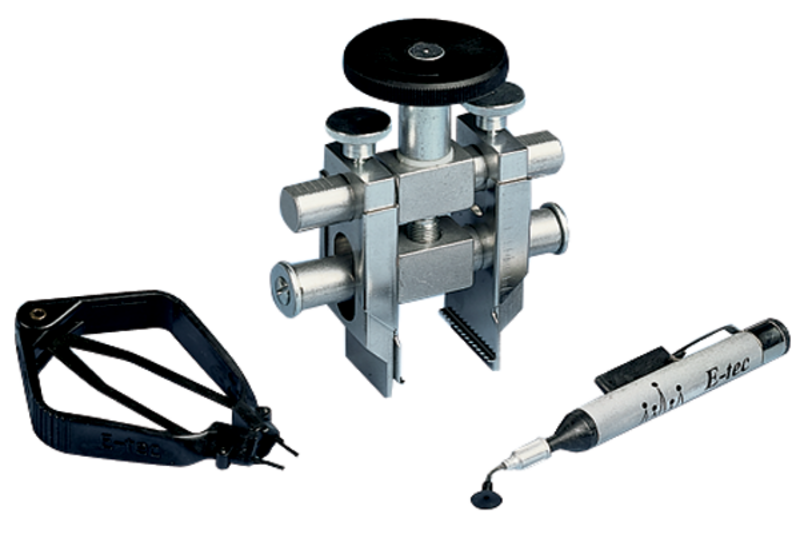

- Tools
Tools
It is not always so easy, and a screwdriver can do more damage than help. The tools of E-tec for the mounting or removal of the different components are designed in such a way that they are not only easy to handle, but they also remain fully functional for a very long time.
Product details
- Lose contact terminals and pins

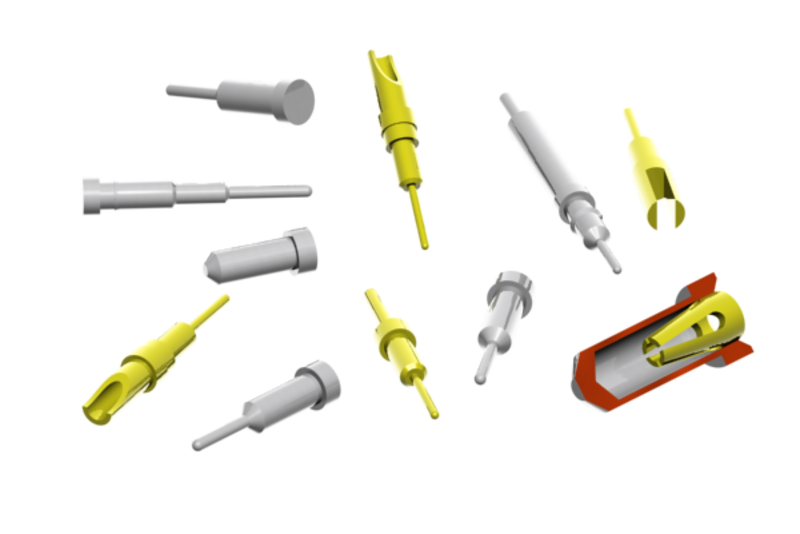

Lose contact terminals and pins
Plug-, Solder- and Adapterterminals in various versions and dimensions
Product details
- "Probe Pins" - spring contacts (loose and assembled)

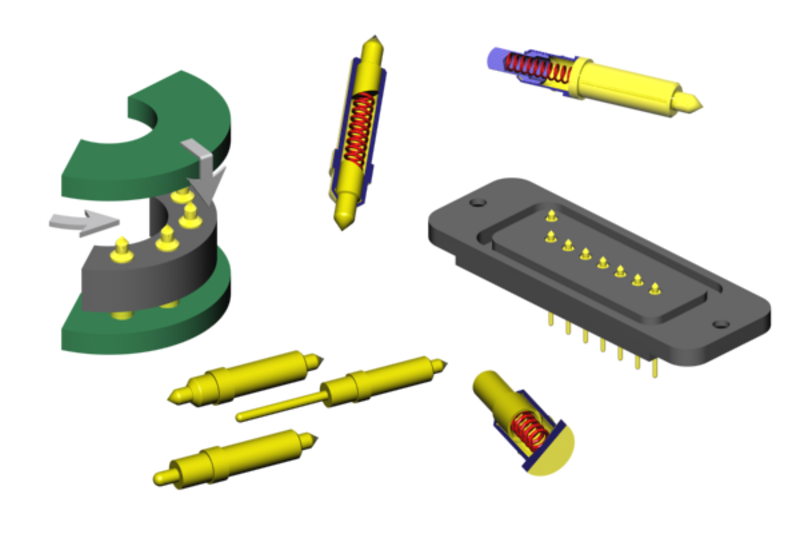

"Probe Pins" - spring contacts (loose and assembled)
There are many applications for spring contacts (probe pins). Not only as loose contact pins, which are individually used by the user, but also in customer-specific components, e.g. In communication technology devices for contacting SIM cards or in charging and base stations. In the case of cameras, lens-to-housing contacts, medical devices and many more, these contacts and contact carriers, which are designed or developed specifically for customer and application requirements, find their application area.
Product details
- E-tec Socket for BGA - Bumped Chip - WLCSP - eMMC
- E-tec Socket for LGA - QFN - MLF - MLP - LCC
- E-tec Socket for CGA - PPGA - PGI
- E-tec Socket for SOP - DSO - SOIC - QFP - xQFP
- E-tec Adapters
- Changeover slide switch

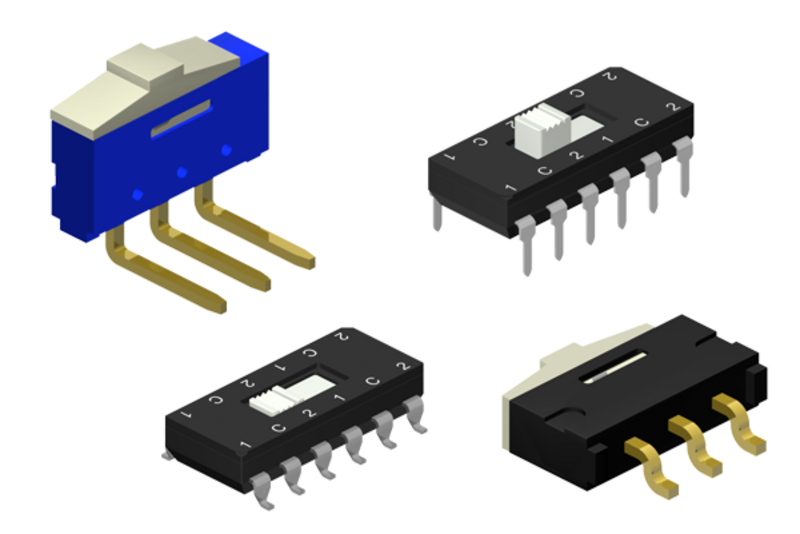

Changeover slide switch
Changeover Slide Switch in THT and SMT versions.
Areas of application: Building and Home Automation, Health and Medical Products, Home Entertainment & Appliances, Industrial Automation, Measurement, Telecommunications etc.Product details
- Rotary switch

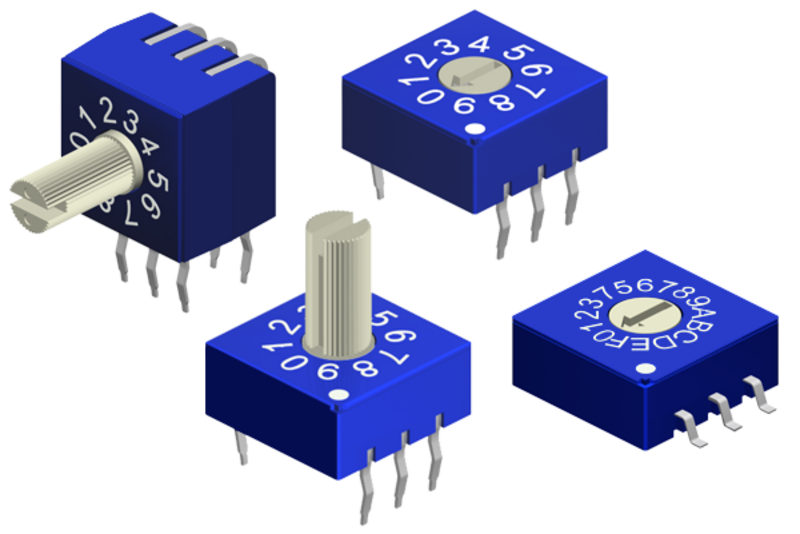

Rotary switch
THT and SMT versions. Standard and small profiles in horizontal and vertical design with 1:4 and 3:3 pin-out.
Areas of application: Building and Home Automation, Health and Medical Products, Industrial Automation, Measurement, Telecommunications etc.Product details

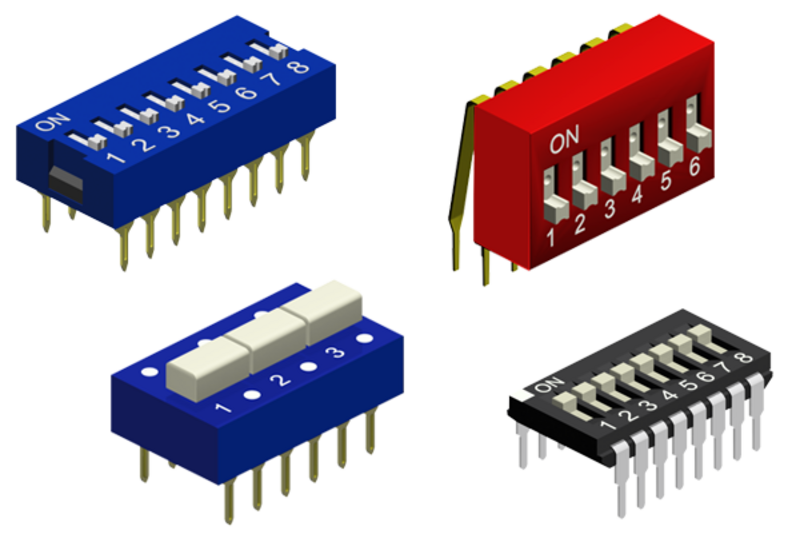

- Slide Type DIP-Switch "THT"
Slide Type DIP-Switch "THT"
Pitch 2.54mm and 1.27mm. Standard and tri-state types also in Small Profile, "End Stackable", and for auto-inserting.
Areas of application: Building and Home Automation, Health and Medical Products, Home Entertainment & Appliances, Industrial Automation, Measurement, Telecommunications etc.Product details
- Slide Type DIP-Switch "SMT"

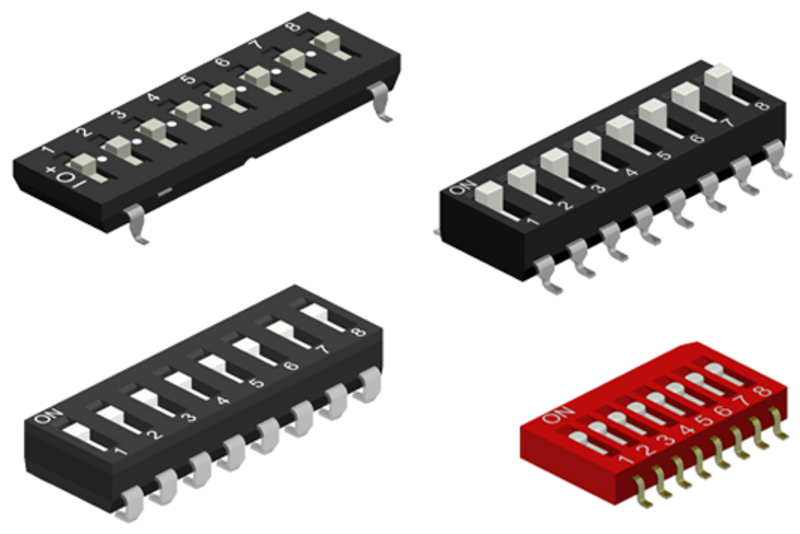

Slide Type DIP-Switch "SMT"
Pitch 2.54mm and 1.27mm. Standard and tri-state types also in small profiles, "end-stackable", and for auto-inserting.
Areas of application: Building and Home Automation, Health and Medical Products, Home Entertainment & Appliances, Industrial Automation, Measurement, Telecommunications etc.Product details

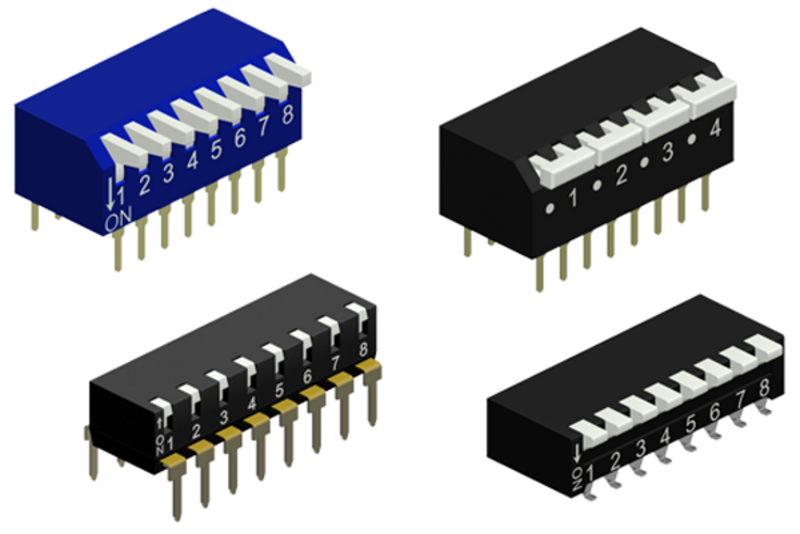

- Piano Type DIP-Switch
Piano Type DIP-Switch
THT and SMT versions with 2.54mm pitch, standard and low profile.
Areas of application: Home Entertainment & Appliances, Industrial Automation, Measurement, Telecommunications etc.Product details
- Tact switch

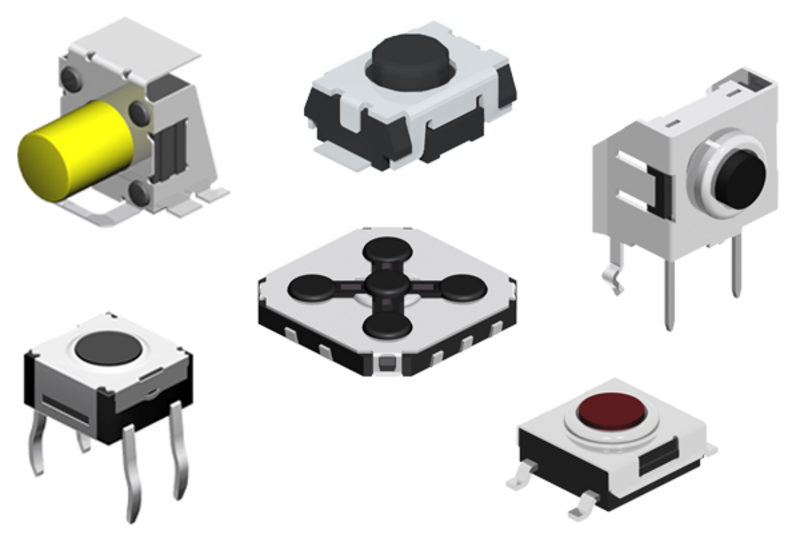

Tact switch
THT and SMT versions with "low profile" and "extended" actuators. Also called "multifunction navigation" type.
Areas of application: Automotive Industry, Building and Home Automation, Health and Medical Products, Home Entertainment & Appliances, Measurement, Telecommunications etc.Product details
- MCX series

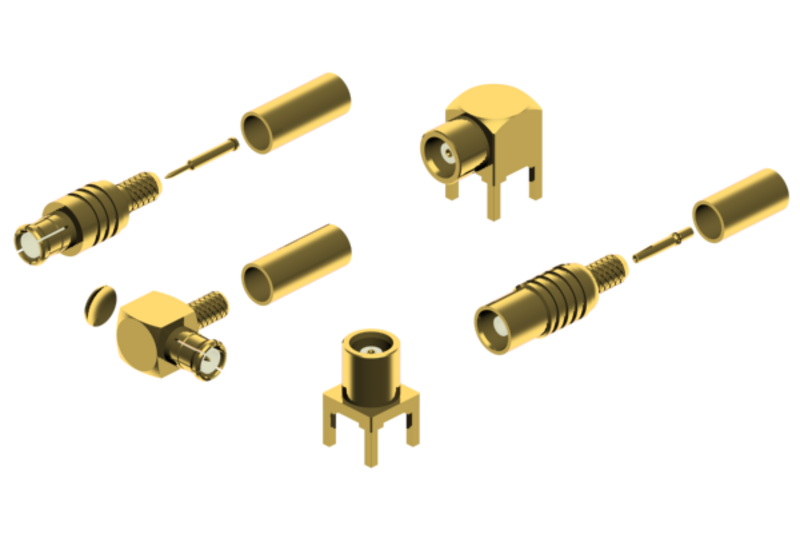

MCX series
This series of miniature snap-on connectors with 50Ω impedance operate in a frequency range up to 6 GHz. The MCX series is the ideal solution for GPS, wireless communication and measurement applications.
Product details
- MMCX series

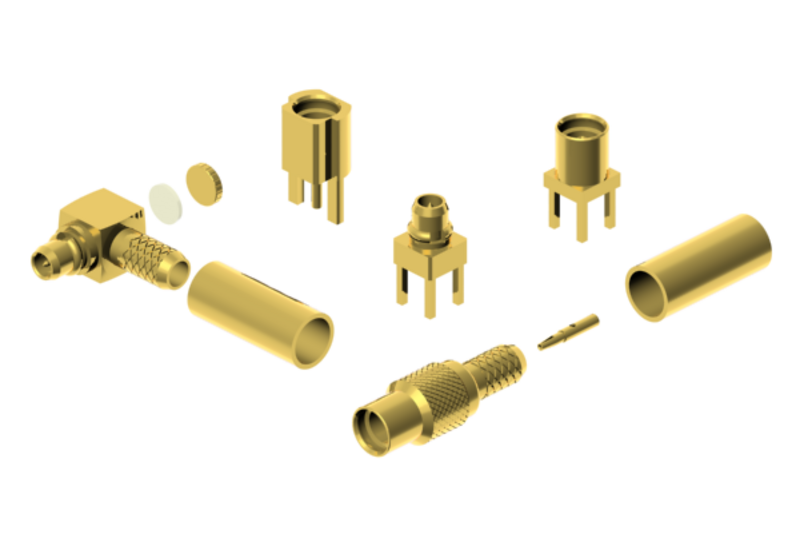

MMCX series
The MMCX series, also with 50Ω impedance and a frequency range of up to 6 GHz, is particularly suitable for applications with a high packing density because of the small dimensions.
Product details
- SMA series

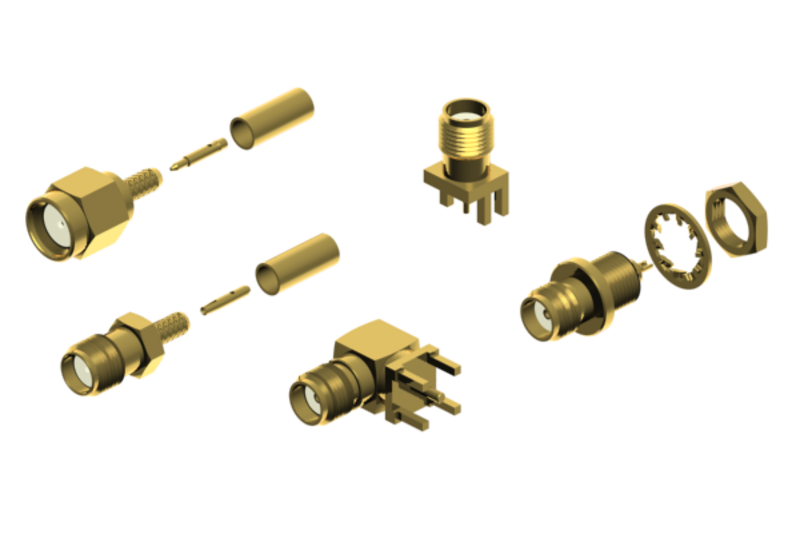

SMA series
The SMA series with 50Ω impedance in high-precision miniature design are especially designed for microwave applications up to 18 GHz. These connectors are made of brass or high quality stainless steel, ensuring excellent durability and strength.
Product details
- SMA reverse series

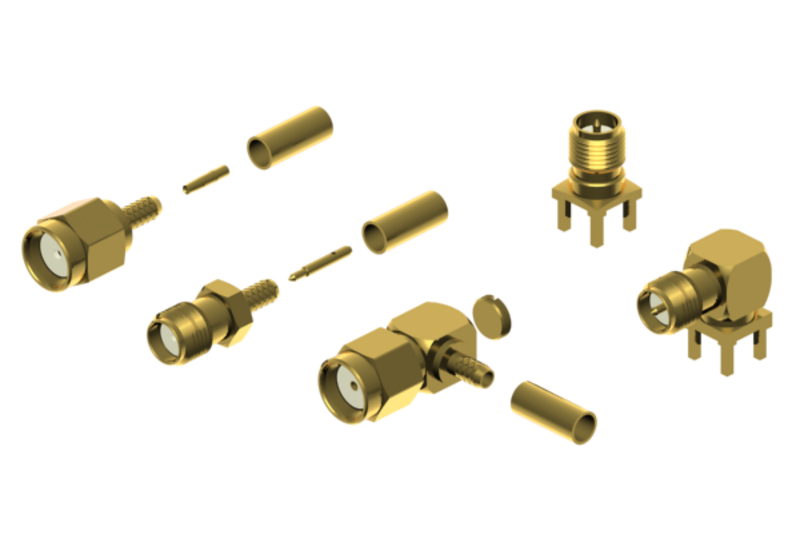

SMA reverse series
The SMA Reverse series is suitable for spread-spectrum wireless applications with a non-standard interface.
Product details
- SMB series

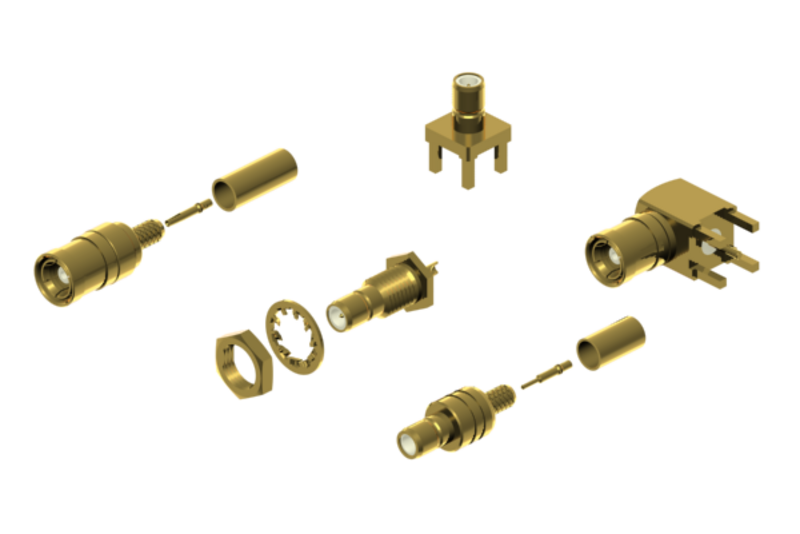

SMB series
These SMB series connectors with 50Ω impedance in subminiature version are designed for repeatable electrical power up to 4 GHz. The connections have a simple "open/close" quick-connect mounting function. Very popular in telecommunications and test equipment.
Product details

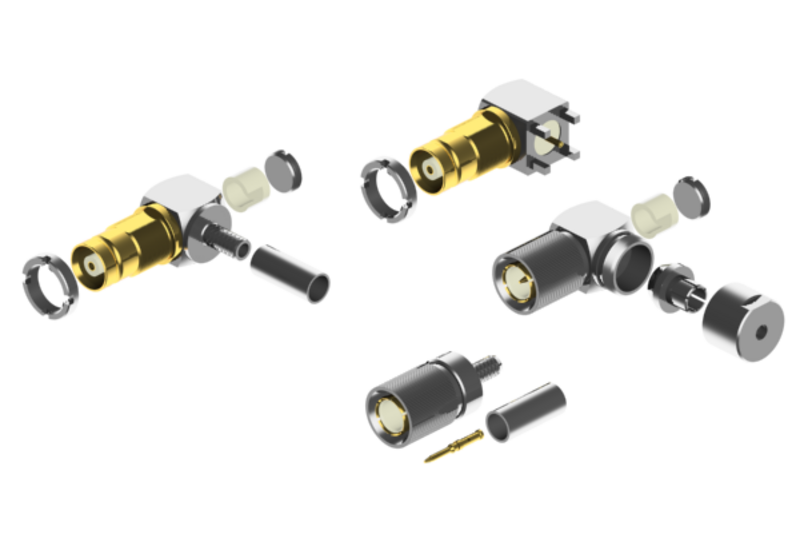

- 1.6/5.6 series
1.6/5.6 series
The coaxial connectors of the 1.6/5.6 series with 75Ω impedance are generally designed for broadcasting and digital signal transmission. These 1.6/5.6 connections are popular in modern telecommunication facilities.
Product details
- SIMM sockets
SIMM sockets
In Through-hole technology, vertical and 26° slanted version 72- and 80-pin. The vertical socket is also called "reverse".
Product details
- DIMM sockets
DIMM sockets
In Through-hole Technology vertical, horizontal 25° and 90° for 100- and 168-pin 3,3V and 5,0V modules, and 184-pin 2,5V modules. For DDR I, II and III modules 184-pin 2,5V & 240-pin 1,5V
Product details
- SO-DIMM sockets
SO-DIMM sockets
All in SM technology with punched precision contacts. For DRAM 3.3V and 5.0V types 144-pin, 200-pin for 1.8V and 2.5V, as well as 204-pin for 1.5V DDR modules. A "piggyback" version is also available for DRAM modules. This means 2 modules are placed one above the other.
Product details
- Mini PCI-Express and M.2 (NGFF) connector
Mini PCI-Express and M.2 (NGFF) connector
Mini PCI ExpressCard socket with a pitch of 0.80mm with 52 contacts. 9 different heights, from 4.00mm to 9.90mm.
M.2 (NGFF) 3.55mm, 4.05mm and 4 key options (A, B, E and M) are available in pitch 0.50mm with 75 contacts, 2 heights.Product details
- Card edge connector
Card edge connector
1.27mm pitch for PCI 32bit and PCI 64bit.
2.54mm pitch vertical and horizontal.
In addition to the Through-hole soldering (THT), SMT versions are also available.Product details
- Wire-to-Wire Connectors
Wire-to-Wire Connectors
The wire-to-wire connectors are a reverse-polarity protected connection and IPX7 waterproof. The E-tec wire-to-wire connectors are 100% compatible with the JST "JWPF" series.
Product details
