Board to Board / Wire to Board Connectors

Board to Board / Wire to Board Connectors

  • Fine Pitch Plug Board Connectors

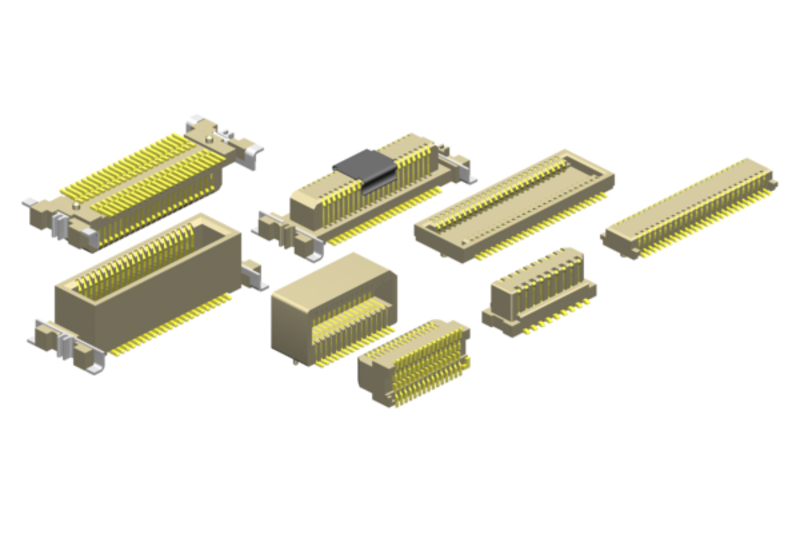

    Fine Pitch Plug Board Connectors

    The Fine Pitch board-to-board connectors enable "high density low profile" PCB connections. These connectors are generally not designed for high mating cycles, but for a one-time connection with the possibility to perform a limited number of mating cycles (about 5 times) during the lifetime of the product for maintenance purposes.

    Available in the pitch dimensions 0.50mm / 0.60mm / 0.80mm

    Product details
  • Pin Header

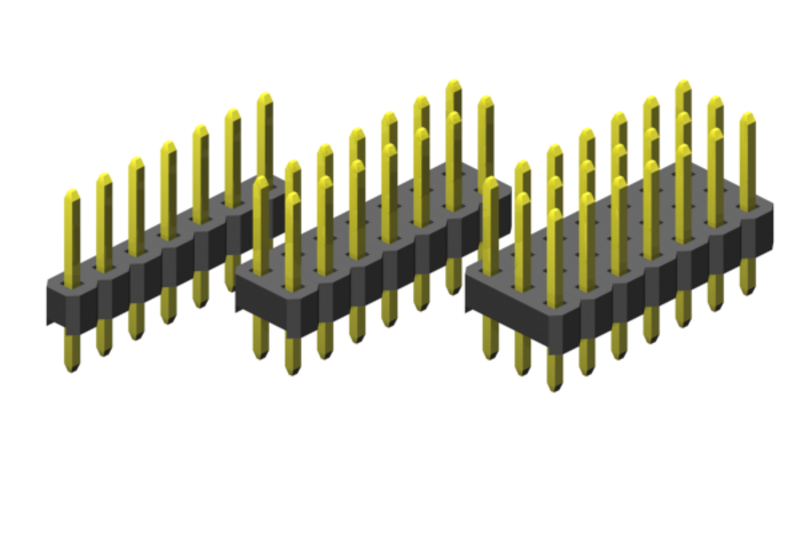

    Pin Header

    Pin-Header in standard soldering, "pin in paste" and SM technology. Straight and angled, available as board spacers, PC 104+ type, high-base "board to board", jumpers and short-circuit bridges.

    Product details
  • Box Header

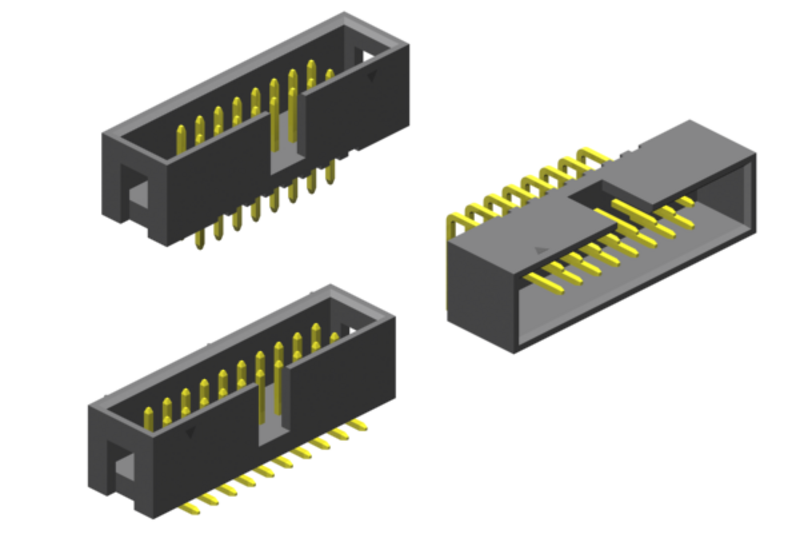

    Box Header

    Box header, also referred to as a "shrouded header", standing and lying in throu hole soldering (TH) and SM technology. Thanks to coding, a "board-to-board" or "board-to-wire" connection with IDC plug-in connectors is possible.

    Product details
  • Mini-Flex™

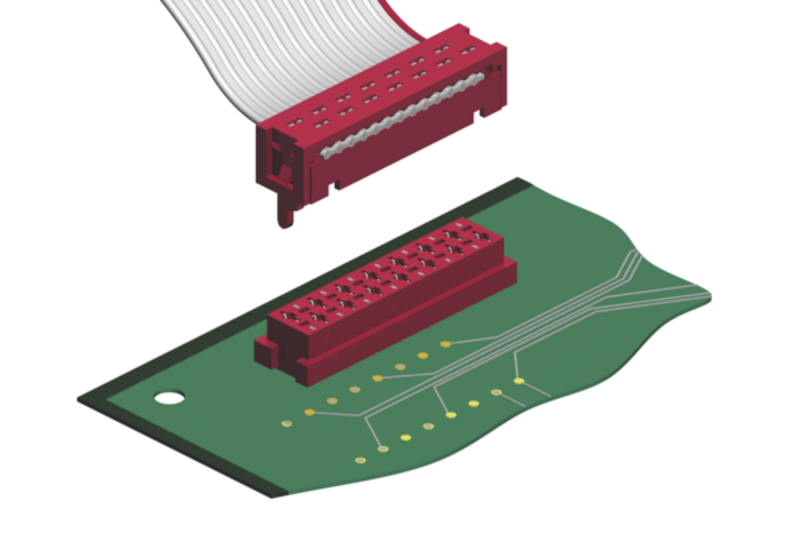

    Mini-Flex™

    The Mini-Flex™ IDC connectors provide an extremely reliable "wire-to-board" connection using standard 1.27mm (UL Std. 2651) flat ribbon cables with the Mini-Mate™ family of connectors. In addition, the E-tec Mini-Mate™ and Mini-Flex™ connector family is 100% compatible with the standards of other manufacturers.

    Product details
  • Mini-Mate™

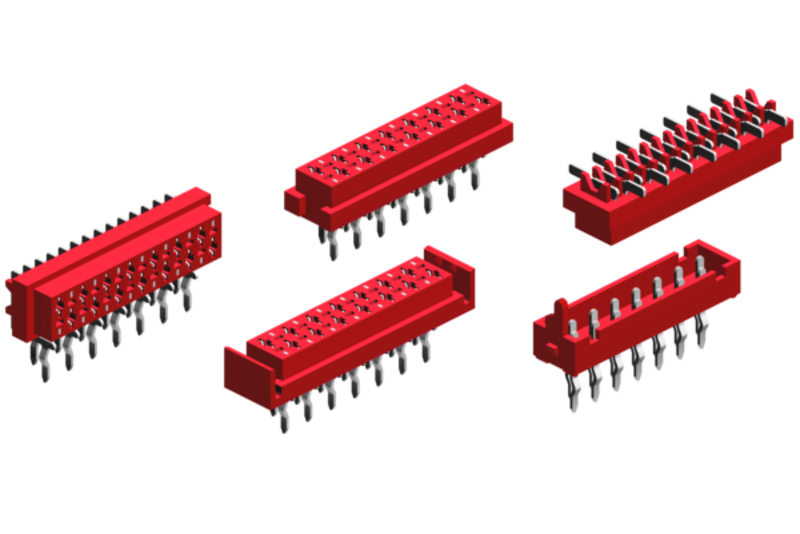

    Mini-Mate™

    These special miniature sockets and pin headers in pitch 1.27mm are available with a plug or solder connection (THT), but also as a surface mount type (SMT). Whether vertical or horizontal, the small compact design provides the highest degree of contact safety and reliability. The versatility of this Mini-Mate™ connector family is demonstrated in conjunction with the Mini-Flex™ design. In addition, the E-tec Mini-Mate™ and Mini-Flex™ connector family is 100% compatible with the standards of other manufacturers.

    Product details
  • Female Header

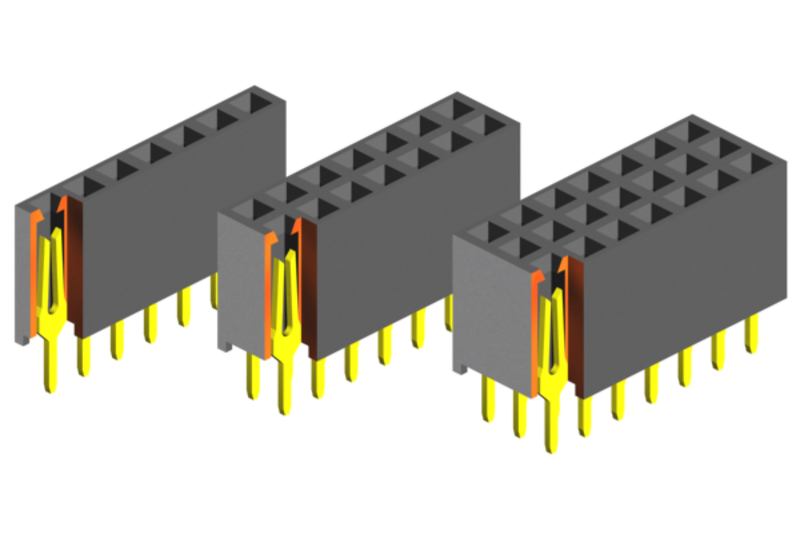

    Female Header

    Female headers in standard soldering and SM technology. Vertical as well as horizontal as, PC 104+ type, "low" & "high" profiles, "top", "side" & "dual" -entry available.

    Product details
  • IDC Connectors

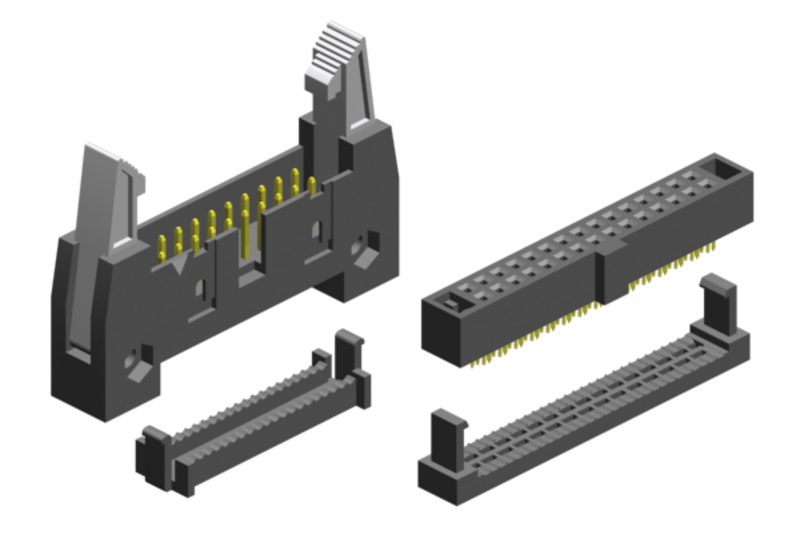

    IDC Connectors

    IDC connectors as socket, "DIP plug" and "transition" version, card edge, box and DIN header (DIN 41 651)

    Product details
  • Flex Board and Flex Cable Connectors

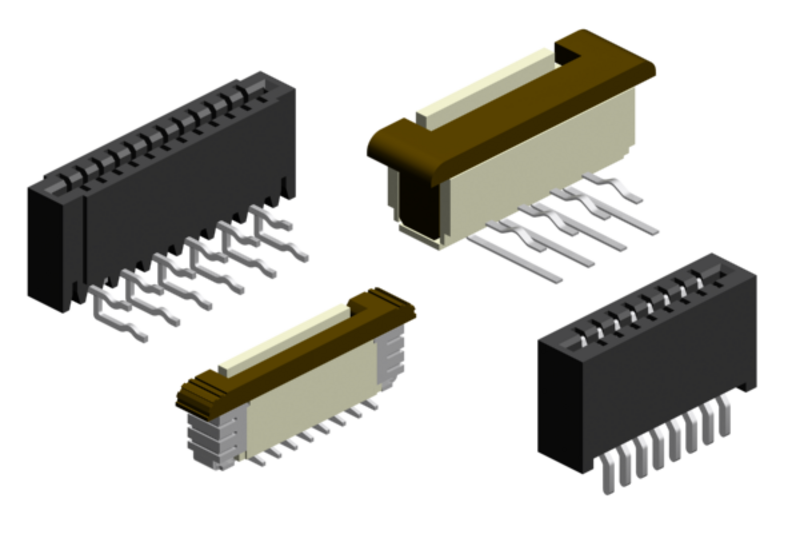

    Flex Board and Flex Cable Connectors

    Flex Board and Flex Cable connectors in soldering (THT) and surface mount (SM) technology for "Flexible Printed Circuit" (FPC) and "Flexible Flat Cable" (FFC). "ZIF" (Zero Insertion Force) and "LIF" (Low Insertion Force) versions vertical and horizontal.

    Product details
  • Flex Cable

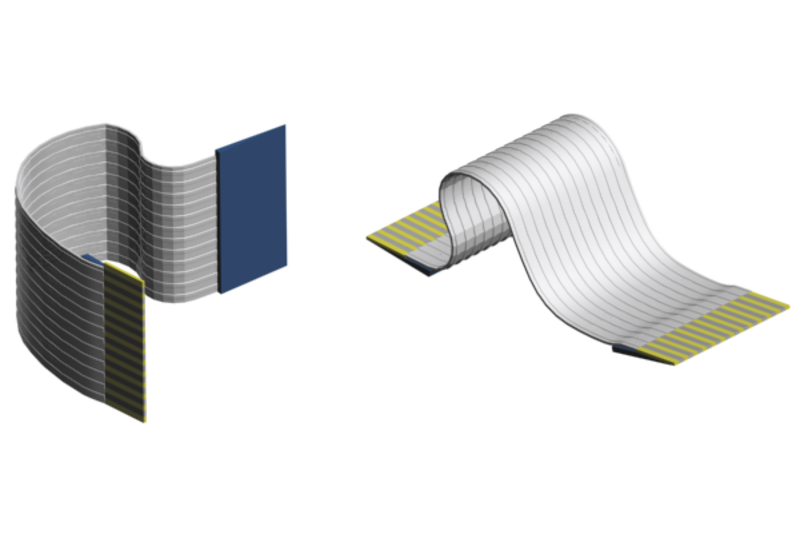

    Flex Cable

    Flex Cable, customer-specific assembly available pitch from 0.50mm to 2.54mm.

    Product details
  • ZIF test sockets for Flex Cable

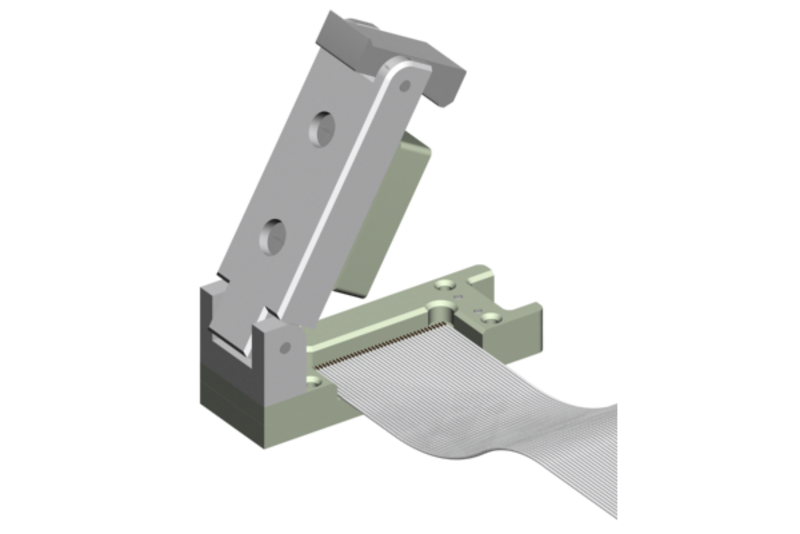

    ZIF test sockets for Flex Cable

    ZIF ("Zero Insertion Force") test sockets for Flex Cable in pitch 0.50mm to 2.54mm. The ZIF test sockets are designed for up to 10,000 test cycles with easy opening / closing of the ClamShell lid.

    Product details
  • Crimp-Contact Connectors

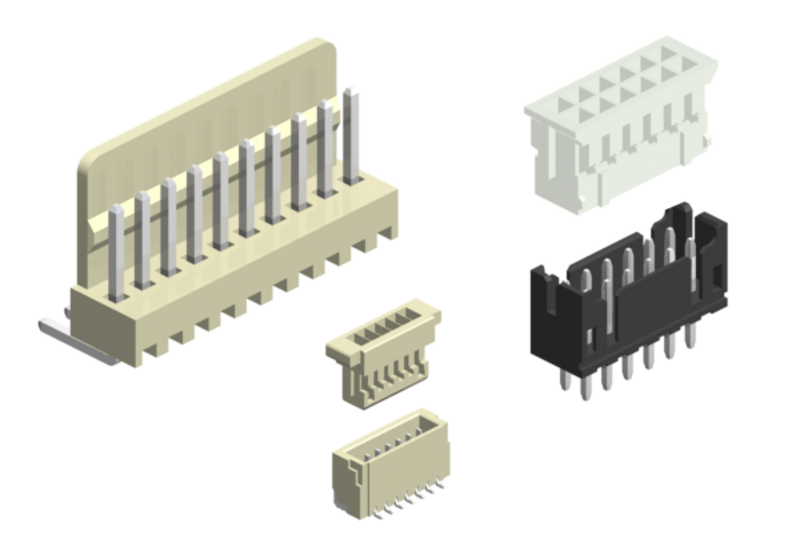

    Crimp-Contact Connectors

    Crimp-Contact connectors of the smallest possible dimensions. A reverse-polarity "board-to-wire" connection in soldering (TH) and surface mount (SM) technology. Most of the E-tec crimp-contact connectors are 100% compatible with those of Molex, Tyco (AMP) or JST.

    Product details
  • Power Connectors

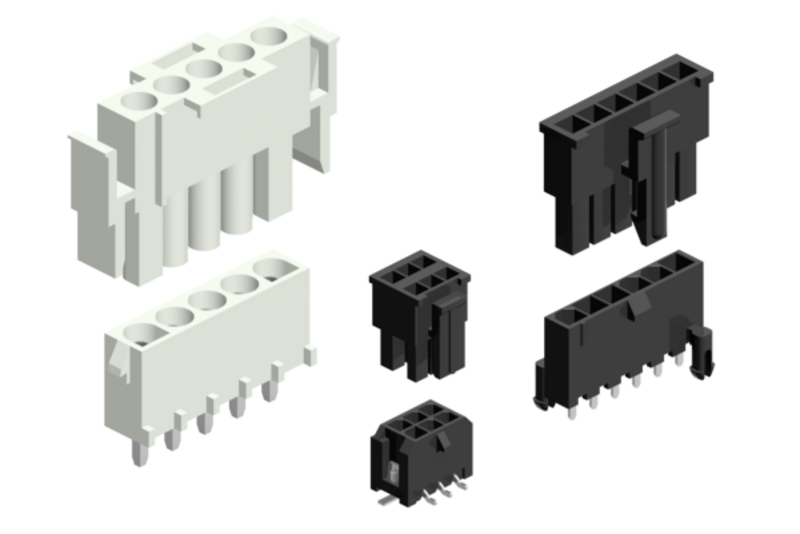

    Power Connectors

    Despite the smallest possible dimensions, the E-tec power connectors are robust, reverse-polarity-proof "board-to-wire" connections in soldering (TH) and SM technology. Most are 100% compatible with those of Molex, Tyco (AMP) or JST.

    Product details
  • SMC Multi BUS/Backplane Connectors
    SMC Multi BUS/Backplane Connectors

    The SMC Multi BUS/Backplane connectors of the E-tec series "MBC" with a pitch of 1.27mm are available in various heights. They thus offer the user the possibility of an optimal module design, flexible PCB spacing for assembly solutions in all industries. Vertical over each other (mezzanine), horizontal to horizontal (extender card), or vertical to horizontal. Thanks to the polarization, all versions are twist-proof.

    Product details
